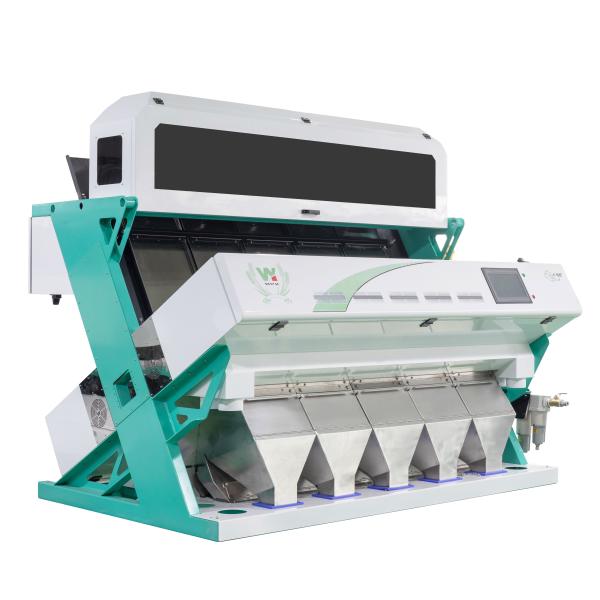

Random Color Plastic Color Sorting Machin For Sorting PP PVC PET HDPE PE
1.Random Color Plastic Color Sorting Machine For Sorting PP PVC PET HDPE PE Working Flow
When plastic color sorter is working, Material hopper under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
2.Technical Parameters:
| MODEL | WYCS5-320 |
| Chutes/Channels | 5/320 |
| Throughput(t/h) | 3-4t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.9kw |
| Power Voltage | 180-240V/50-60Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.8M3/Min |
| Weight | 900kg |
| Diamension(L*W*H) | 2244*1540*1852mm |
3.Features:
►1.Most advanced RGB 5400 pixel linear industry CCD camera.
►2.America FPGA process chip.
►3.Janpan Toshiba CCD sensor.
►4.Ejectors:
a.Janpan SMC ejector
b.Italy Matrix ejector
c.Metal ejector
►5.Filter:
a:Janpan SMC filter
b:Janpan CKD filter
c:Korea YSC filter
►6.Power supply/source:Taiwan Meanwell more long lifetime
►7.All LED light source,more long lifetime and save power
►8.12-inch Flexem Humanized touch screen
4.Examples after color sorting by color sorter machine
5.FAQ:
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
2. How long about the guarantee period?
One year. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.
4. Is oversea service available?
Yes, our engineers could go abroad when required.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send engineer to guide for installation, then customer should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation, local transportation and security when the Engineer arrived.
6.Our Clients
7.Photos with Customers
